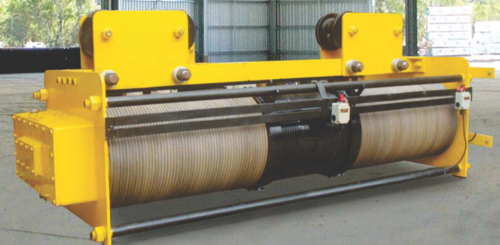

Heavy Duty Electric Wire Rope Hoist
Product Details:
- Lifting Speed 3 m/m
- Hook Hook
- Maximum Lifting Height 6 up to 30 Meter (m)
- Lift Speed 3 m/m
- Voltage 415 Watt (w)
- Rotating Speed 3 m/m
- Trolley With Trolley
- Click to View more
Heavy Duty Electric Wire Rope Hoist Price And Quantity
- 100000.00 INR/Piece
- 1 Piece
Heavy Duty Electric Wire Rope Hoist Product Specifications
- 3 m/m
- 3 m/m
- 1000 Kg/hr
- 6 up to 30 Meter (m)
- With Trolley
- 3 m/m
- 415 Watt (w)
- Hook
Heavy Duty Electric Wire Rope Hoist Trade Information
- 10 Piece Per Week
- 3-4 Week
- All India
- ISO - 9001:2015
Product Description
Heavy Duty Electric Wire Rope Hoist is an advanced system designed for a variety of industrial applications such as in foundry duty, molten metal pouring, and other various uses. Basically, it is a lifting equipment that is widely known for its efficient lifting mechanism and optimum performance. We have made available a wide assortment of the machines to meet your varied requirements. Our offered range of hoists includes Hoist for Curvature beams, Chain hoists, Electric crab hoist for double girder crane and High lift hoist. Wire Rope Hoist can be availed from us at the budget-friendly price range.
Technical Specifications
| Model | S.W.L in kg. | Lift (mtr) | Wire rope (Dia) | No. of Fall | Hoisting speed (mtr/min) | Hoisting Motor (HP) | C.T. Motor (HP) | A | B | C | D | E | F |
| M1/0.5/6 | 500 | 6 | 6 | 2 | 6 | 1 | 0.5 | 640 | 780 | 475 | 320 | 300 | 590 |
| M1/1/3 | 1000 | 6 | 6 | 4 | 3 | 1 | 0.5 | 670 | 780 | 475 | 320 | 300 | 620 |
| M2/1/6 | 1000 | 6 | 8 | 2 | 6 | 2 | 0.5 | 680 | 885 | 520 | 410 | 410 | 630 |
| M2/1/9 | 1000 | 6 | 8 | 2 | 9 | 3 | 0.5 | 680 | 885 | 520 | 410 | 410 | 630 |
| M2/1/12 | 1000 | 6 | 8 | 2 | 12 | 5 | 0.5 | 680 | 885 | 520 | 410 | 410 | 630 |
| M2/1.5/4 | 1500 | 6 | 8 | 3 | 4 | 2 | 0.5 | 730 | 885 | 520 | 410 | 410 | 680 |
| M2/1.5/6 | 1500 | 6 | 8 | 3 | 6 | 3 | 0.5 | 730 | 885 | 520 | 410 | 410 | 680 |
| M2/1.5/8 | 1500 | 6 | 8 | 3 | 8 | 5 | 0.5 | 730 | 885 | 520 | 410 | 410 | 680 |
| M2/2/3 | 2000 | 6 | 8 | 4 | 3 | 2 | 0.5 | 730 | 885 | 520 | 410 | 410 | 680 |
| M2/2/4.5 | 2000 | 6 | 8 | 4 | 4.5 | 3 | 0.5 | 730 | 885 | 520 | 410 | 410 | 680 |
| M3/2/4.5 | 2000 | 6 | 10 | 2 | 4.5 | 3 | 0.5 | 800 | 885 | 685 | 510 | 480 | 750 |
| M3/2/7.5 | 2000 | 6 | 10 | 2 | 7.5 | 5 | 0.5 | 800 | 885 | 685 | 510 | 480 | 750 |
| M3/2/11 | 2000 | 6 | 10 | 2 | 11 | 7.5 | 0.5 | 800 | 885 | 685 | 510 | 480 | 750 |
| M3/3/3 | 3000 | 6 | 10 | 4 | 3 | 3 | 0.5 | 940 | 885 | 685 | 510 | 480 | 810 |
| M3/3/5 | 3000 | 6 | 10 | 4 | 5 | 5 | 0.5 | 940 | 885 | 685 | 510 | 480 | 810 |
| M3/3/7.5 | 3000 | 6 | 10 | 4 | 7.5 | 7.5 | 0.5 | 940 | 885 | 685 | 510 | 480 | 810 |
Product details
| Capacity | >15 ton |
| Chain Length (meters) | 0-2,2-4,4-6 |
| Trolley Option | With Trolley,Without Trolley |
Specifications
- Maximum Lifting Weight Approx. 50 T
- Traveling Speed Approx 12-15 m/min
- Lift Speed Approx 3 m/min
